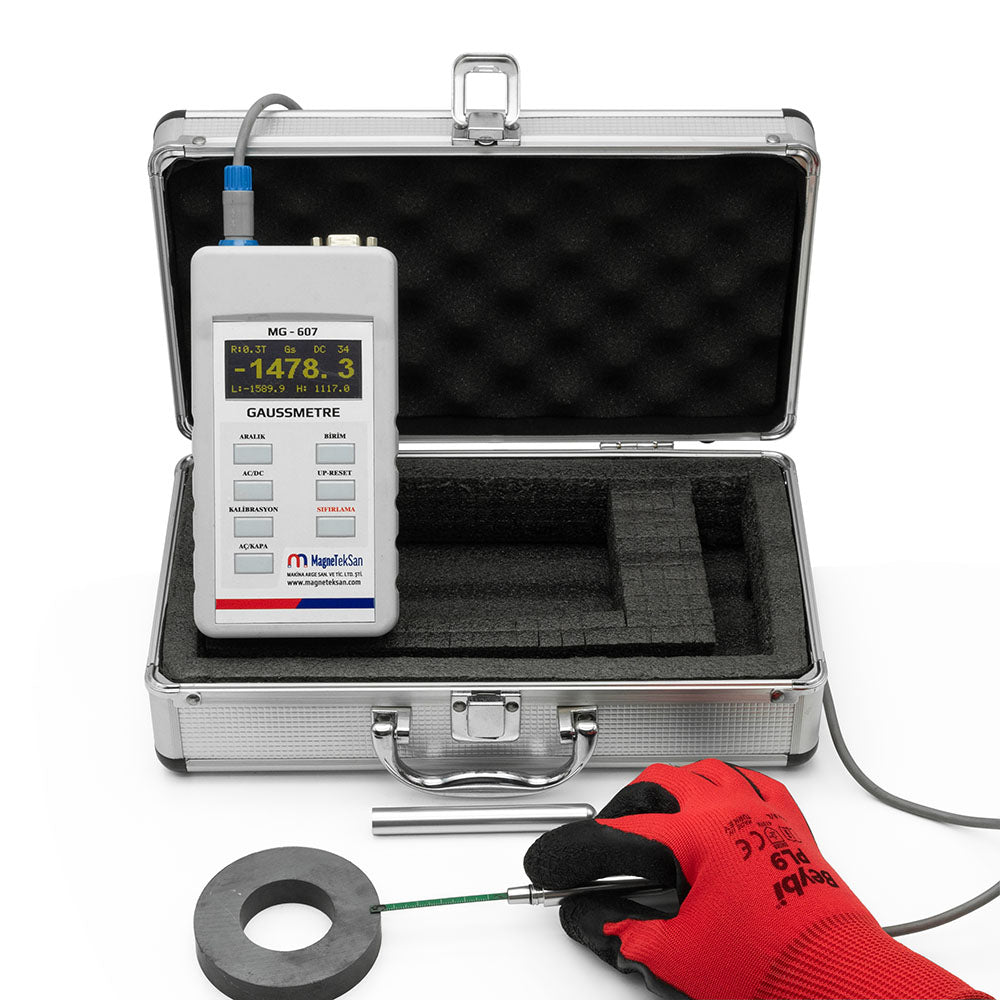

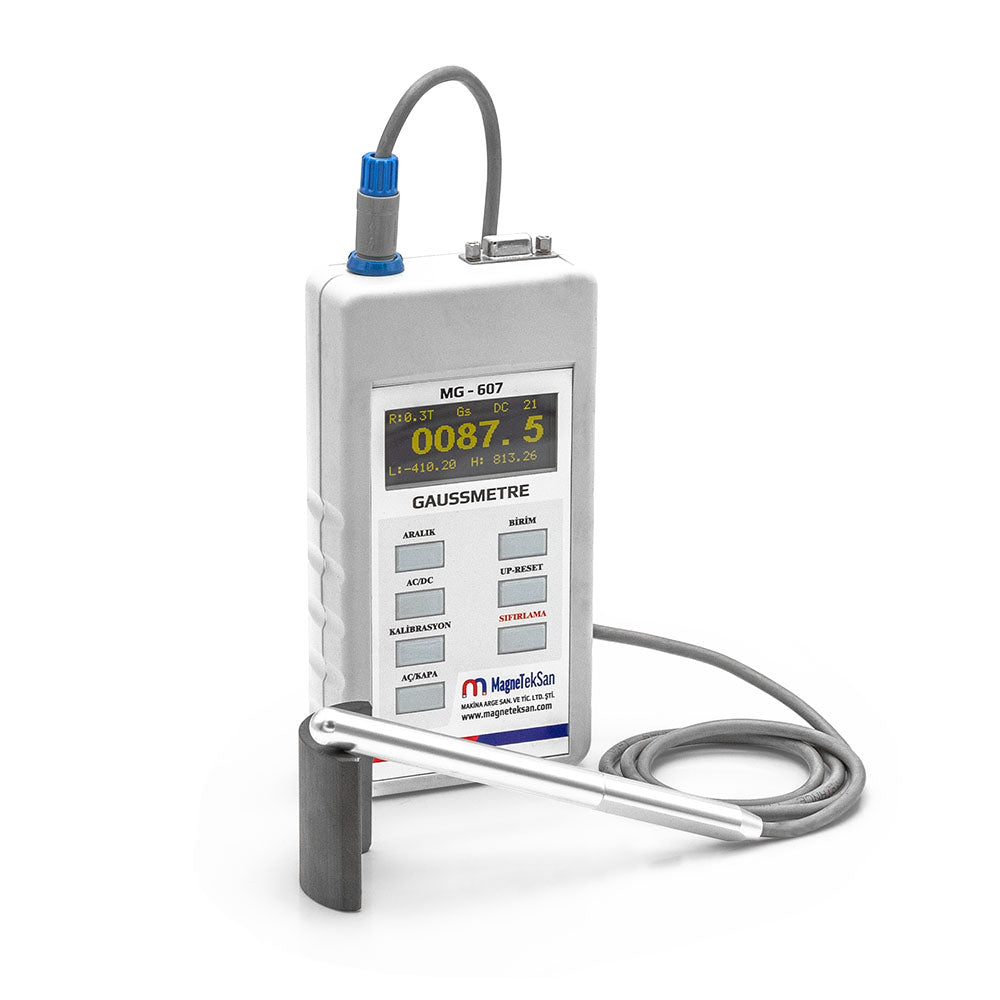

MG-607 High Precision Digital Gaussmeter – Magnetic Field Measurement Device with Interchangeable Probe

MG-607 Digital Gaussmeter is a professional magnetic field measuring device suitable for industrial and laboratory use, developed for precise, reliable and repeatable measurement of high magnetic fields. It is easy and practical to use; it can measure magnetic fields up to the 30,000 Gauss (3 Tesla) level with high accuracy.

The device is shipped in a manufacturer-controlled manner as standard. To maintain measurement accuracy and reliability, it is recommended to perform annual calibration. Upon request, the device can be sent to you with calibration verified using reference measurement devices within our company, at an additional fee. In addition, if requested, calibration operations can be performed separately and with additional fees in TUBITAK or TURKAK approved laboratories, and intermediary services are provided in these processes. Oct.

The MG-607 Gaussmeter is suitable for measuring both static magnetic fields (permanent magnets) and alternating magnetic fields (electromagnets). Thanks to the external, flat (axial) probe mounted on it, even the magnetic field of very small magnets such as Ø1×1 mm can be measured reliably. It is suitable for magnetic field measurements in the 0–400 Hz range and offers high precision with a resolution of 0.1 Gauss.

MG-607 Gaussmeter Technical Specifications

Measurement Range: Up to 30,000 Gauss (30.0 mT / 300 mT / 3000 mT – 3-stage)
Maximum Measurement Capacity: 3 Tesla
Measurable Magnetic Field Frequency: 0 – 400 Hz
Measurement Precision: 0.1 Gauss resolution
Probe Type: Axial (Vertical), external flat probe
Display: OLED cage display with 180° viewing angle
Display Units: Gauss (Gs), milliTesla (mT), kA/m
Power Source: Rechargeable battery
Automatic Shutdown: Automatic power off after 60 seconds
Operating Temperature: 0°C – 40°C
Operating Humidity Range: 20% – 80%

The Advantage of Interchangeable Probes (MG-607's Most Powerful Feature)

The probe is the most sensitive and easily damaged part in gaussmeters. In many gaussmeters available on the market, when the probe malfunctions, the device becomes completely unusable and a replacement probe cannot be obtained.

The MG-607 series completely eliminates this problem. Even if the probe is damaged, the device can continue to be used by installing a cost-effective replacement probe. In this way, the device's service life is extended, operating costs are reduced, and measurement continuity is ensured.

Field Experience, Assurance, and Transportation Safety

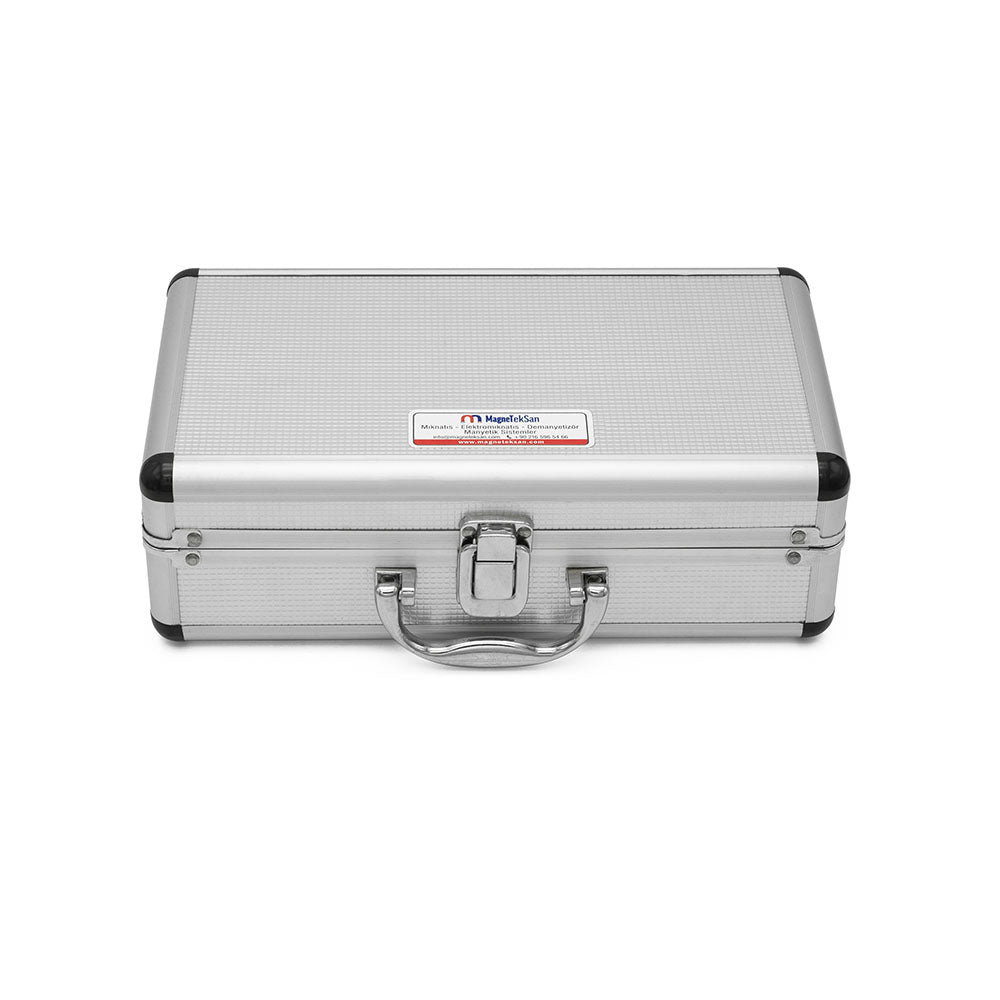

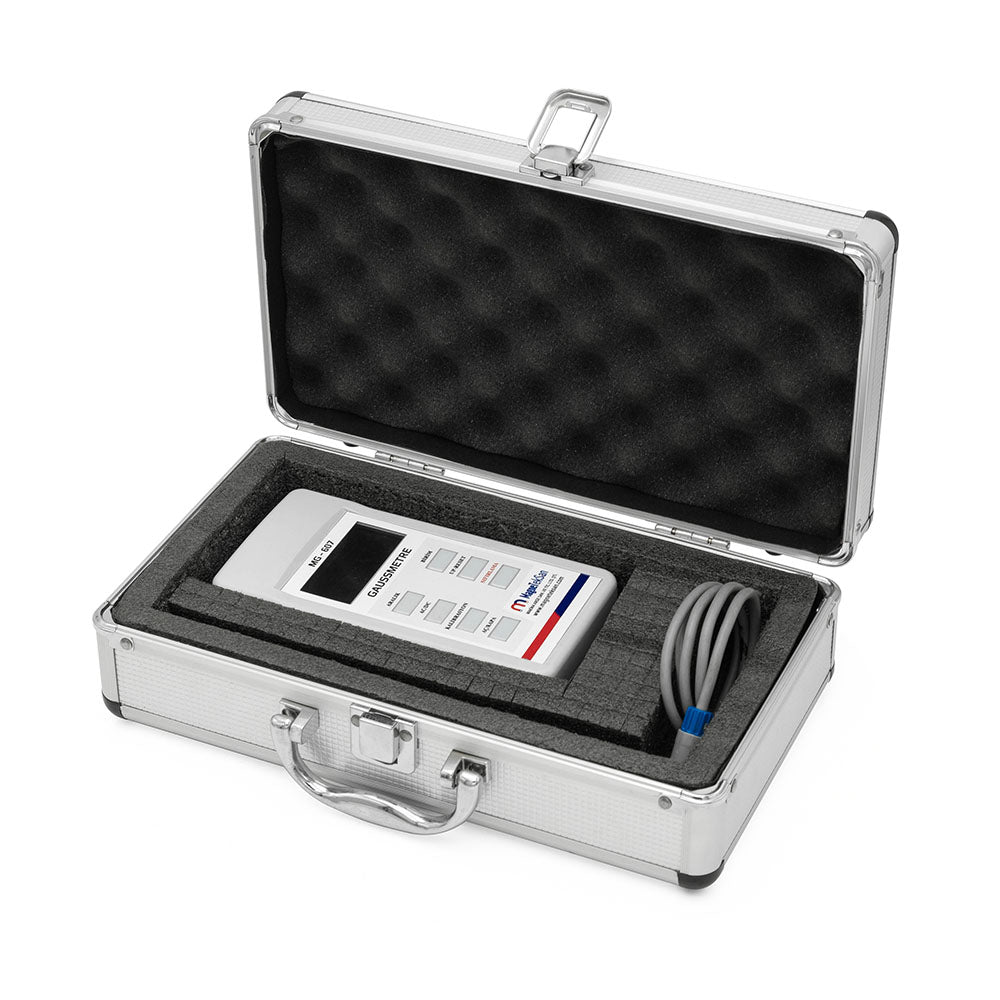

MG-607 Gaussmeter is a Magnetexane production; It has been used continuously in measurement, testing and technical service processes for more than 10 years within our company.p>The device is supplied with a sturdy steel transport case to prevent damage during transportation. In this way, it can be safely transported and used in factory, field, and laboratory environments.
