Ø25×20 mm 24V Electromagnet – For Electromechanical Lock and Conveyor Systems, 50% Duty Cycle

Ø25×20 mm 24V Electromagnet – For Electromechanical Lock and Conveyor Systems, 50% Duty Cycle

Name: Ø25×20 mm 24V Electromagnet – For Electromechanical Lock and Conveyor Systems, 50% Duty Cycle
Brand: Magnet4Global
SKU: MGK-E-76
Price: 20.42 GBP
Availability: InStock

£20.42 GBP

Təxmini çatdırılma müddəti: Beynəlxalq - 3-5 gün.

İlk sifarişinizə 15% endirim əldə etmək üçün "WELCOME15" kodundan istifadə edin.

Pulsuz çatdırılma və geri qaytarma: Bütün 150 dollardan yuxarı sifarişlərdə.

Vahid mal kodu: MGK-E-76
Mövcuddur: Stokda
Kolleksiyalar: N/A
Növü: Round Electromagnets

Təhlükəsiz Ödənişə Zəmanət Verin:

Təsvir

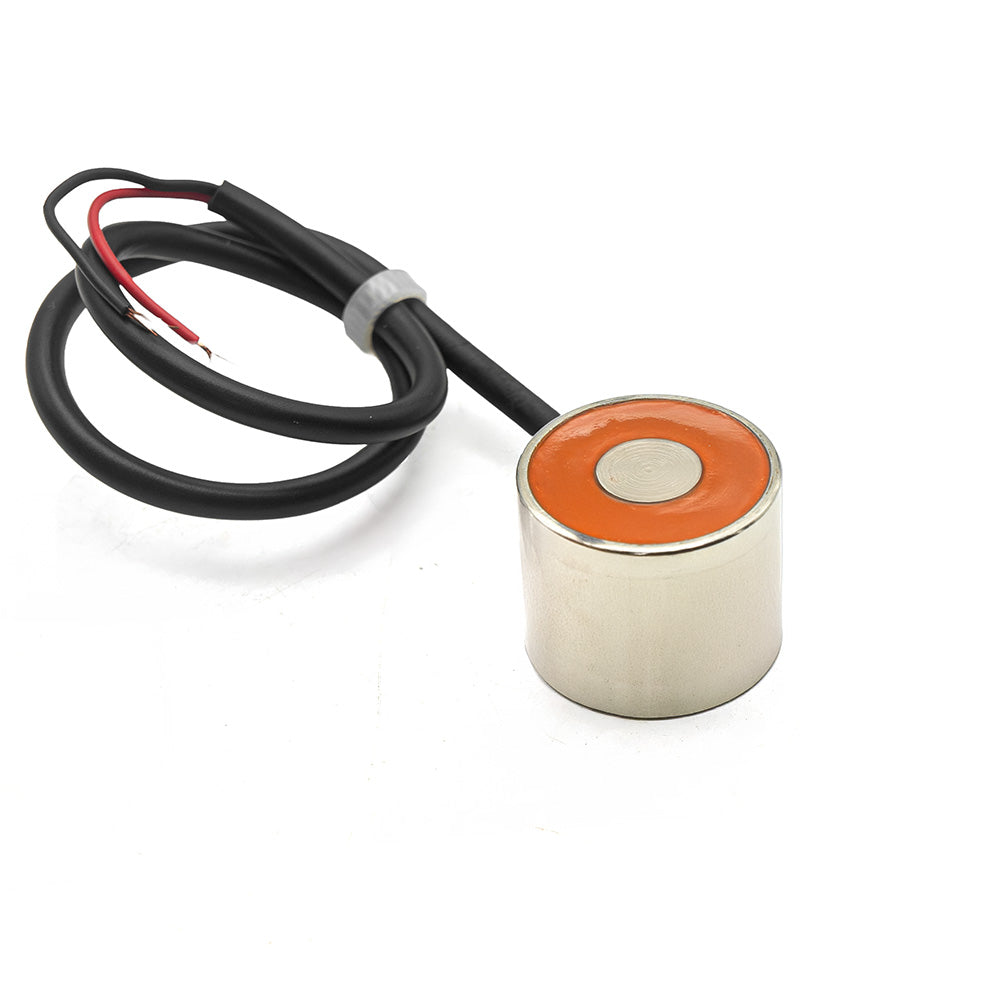

Ø25×20 mm 24V Electromagnet

For Electromechanical Locks and Conveyor Systems – 50% Duty Cycle

Despite its compact size, this round electromagnet provides a holding force of 10–15 kg. It is designed for electromechanical locks, conveyor systems, and automation solutions. Equipped with a rear M4×8 threaded mount and side cable outlet for easy installation.

Key Features

Compact power: Ø25 × 20 mm body with strong performance
Operation: 24V DC – 50% duty cycle
Holding Force: 10–15 kg

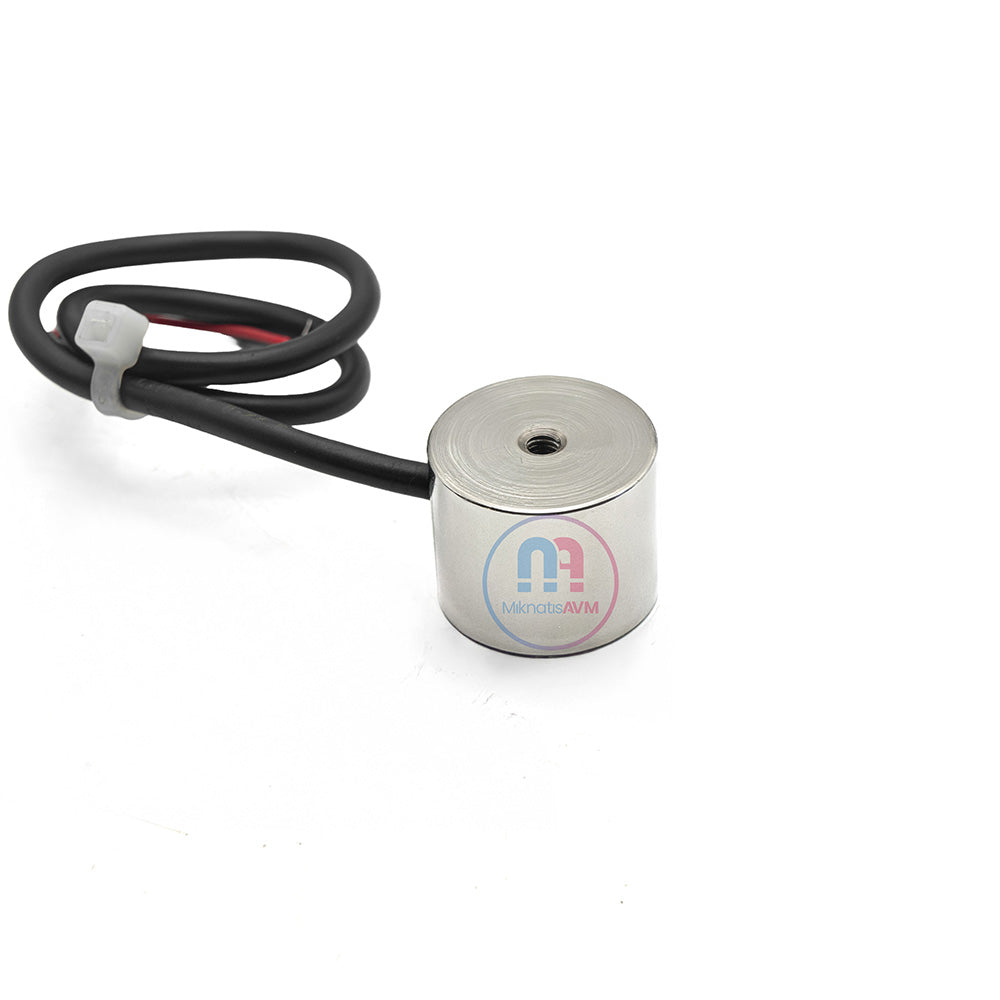

Mounting: Rear M4×8 thread – side cable outlet
Housing: alloy steel
Max Temperature: 100°C

Application Areas

Electromechanical door/drawer locks
Conveyor systems for positioning and holding parts
Magnetic holding in compact machinery

Technical Specifications

Dimensions: Ø25 mm × 20 mm
Voltage: 24V DC
Connection: Rear M4×8 thread
Cable: Side outlet

Note: Holding force may vary depending on surface condition, material thickness, and air gap. 50% duty cycle means 1 unit of operation should be followed by 1 unit of rest.

Round Electromagnets Catalog

You can find the technical drawing and standard catalog dimensions of the product in the table below. Please contact us for custom size production.

MODEL (BYR5CK/ BUR5CK)	Dimensions (mm)			Power WATT	Voltage VDC	Duty Cycle %	Connection POSITION	Cable Gland PG7-9	Min. Plate Thick. (mm)	Pull Force (N)
MODEL (BYR5CK/ BUR5CK)	ØD	H	M	Power WATT	Voltage VDC	Duty Cycle %	Connection POSITION	Cable Gland PG7-9	Min. Plate Thick. (mm)	Pull Force (N)
Ø40x30 mm	40	30	M6	5.2	24	50	TOP/SIDE	PG7	5	470
Ø50x30 mm	50	30	M6	7	24	50	TOP/SIDE	PG7	5	760
Ø63x35 mm	63	35	M6	10	24	50	TOP/SIDE	PG7	8	1000
Ø80x40 mm	80	40	M8	15	24	50	TOP/SIDE	PG7	10	2400
Ø100x45 mm	100	45	M8	25	24	50	TOP/SIDE	PG7	15	3400
Ø150x55 mm	150	55	M16	37.2	48	50	TOP/SIDE	PG7	25	9300
Ø180x65 mm	180	60	M20	50	48	50	TOP/SIDE	PG7	30	15000
Ø200x60 mm	200	60	3xM12	65	48	50	TOP/SIDE	PG9	35	25000
Ø250x80 mm	250	80	3xM12	90	48	50	TOP/SIDE	PG9	40	30000
Ø280x110 mm	280	110	3xM12	150	48	50	TOP/SIDE	PG9	50	40000
Ø300x130 mm	300	130	3xM12	180	48	50	TOP/SIDE	PG9	80	45000
